Architectural hanger rod

• High-performance anchor
• Simple connection to the structure
• Quick installation

An architectural anchor

A fork is a simple, efficient and elegant way to anchor a structural rod to a structure. A metal plate with a hole is sufficient, making the need for sophisticated connections unnecessary.
For all the rod diameters and grades mentioned below, we offer a range of aesthetic and functional forks that provide all the required qualities in terms of strength and durability.

Advantages

Hanger rods offer numerous advantages:
• Simplicity: during installation (prefabricated hangers can be delivered directly to site) and maintenance,
• Durability: steel hangers are galvanized or plated; the SS460 range is made from high quality stainless steel,
• Aesthetics: the same design regardless of the forces involved,
• Angular correction: fork design allows for 0.5°, which is usually enough to compensate for potential structural
inaccuracies,
• Adjustment: adjustment range is equal to the diameter of the rod, making visual inspection quick and simple,
• Tension: tension and direct tension of rods can be controlled,
• Strength: range components modelled using finite element studies,
• Endurance: the system has successfully withstood two million fatigue test cycles at an amplitude of 110 MPa and 55% of rod UTS.

Three hanger ranges

Three hanger ranges are available depending on project requirements:
• SS460 is based on the use of stainless steel rods with a yield strength of 460 MPa.
• S520 is based on the use of carbon steel rods with a yield strength of 520 MPa.
• Special hangers is based on the use of carbon steel + HSA rods with a yield strength of 870 MPa, largely surpassing other rods available on the market while ensuring optimum fatigue resistance. This rod optimises the design of the structure by reducing the number of hangers or the diameter of the rods.

Class 12 UPGRADED

Nominal
Diameter
mm
Thread
pitch
mm
Resistant
area
mm2
Linear
weight
kg/m
UTS
kN
Fp0.2
kN
F tension Max(1)
kN
M30 3,5 560 4,70 672 605 538
M33 3,5 693 5,78 832 748 665
M36 4 816 6,83 979 881 783
M39 4 975 8,08 1 170 1053 936
M45 4,5 1 306 10,83 1 567 1 410 1 254
M56 5,5 2 030 16,84 2 436 2 192 1 949
M64 6 2 675 22,14 3 210 2 889 2 568
M72 6 3 459 28,44 4 151 3 736 3 321
M76 6 3 889 31,89 4 667 4 200 3 733
M80 6 4 344 35,61 5 213 4 691 4 170

(1) Maximum Tensioning Force in accordance with Eurocode 2 ; Local regulation may apply.

Class 10 UPGRADED

Nominal
Diameter
mm
Thread
pitch
mm
Resistant
area
mm2
Linear
weight
kg/m
UTS
kN
Fp0.2
kN
F tension Max(1)
kN
M30 3,5 560 4,70 599 504 454
M33 3,5 693 5,78 742 624 561
M36 4 816 6,83 873 734 661
M39 4 975 8,08 1 043 878 790
M45 4,5 1 306 10,83 1 397 1 175 1 058
M56 5,5 2 030 16,84 2 172 1 827 1 644
M64 6 2 675 22,14 2 862 2 408 2 167
M72 6 3 459 28,44 3 701 3 113 2 802
M76 6 3 889 31,89 4 161 3 500 3 150
M80 6 4 344 35,61 4 648 3 909 3 518

(1) Maximum Tensioning Force in accordance with ’Eurocode 2 ; Local regulation may apply.

Steel properties

• End threaded rods complying to:
– Tensile rod steel grade according to EN10083
– Ultrasonic testing of primary bar according to EN 10308
– Magnetic particle inspection of heat treated bar according to NF A04-121
– Resilience ISO V measured according to EN 10045-1
– Tensile properties measured according to EN10002.
• Nut steel grade according to EN10083 : Class of quality according to EN 20898-2
• Washer steel grade according to EN10083
• Plate steel grade according to EN10025-2
• Thread obtained by cold deformation: Geometry according to ISO 965-1 – fine pitch

Class 10 Class 12
 Temp. Properties  Units  ISO898-1
Class 10.9
 ISO898-1
Class 12.9
 at +20°C  UTC  Mpa  1000*  1200*
 Fp0.2  Mpa  900*  1080*
 Elongation
at break
 %  9*  8
 Resilience  J  NA  NA
 at +0°C  Resilience  J  NA  NA
at -20°C  Resilience  J  27  NA

Modulus of elasticity : 200 GPa (indicative value)
* Nominal value

Please contact us regarding diameters not listed above.
Couplers and turnbuckles corresponding to the rods described above enable the use of H Rod hangers for hanger lengths that exceed the maximum unit lengths of the rods.

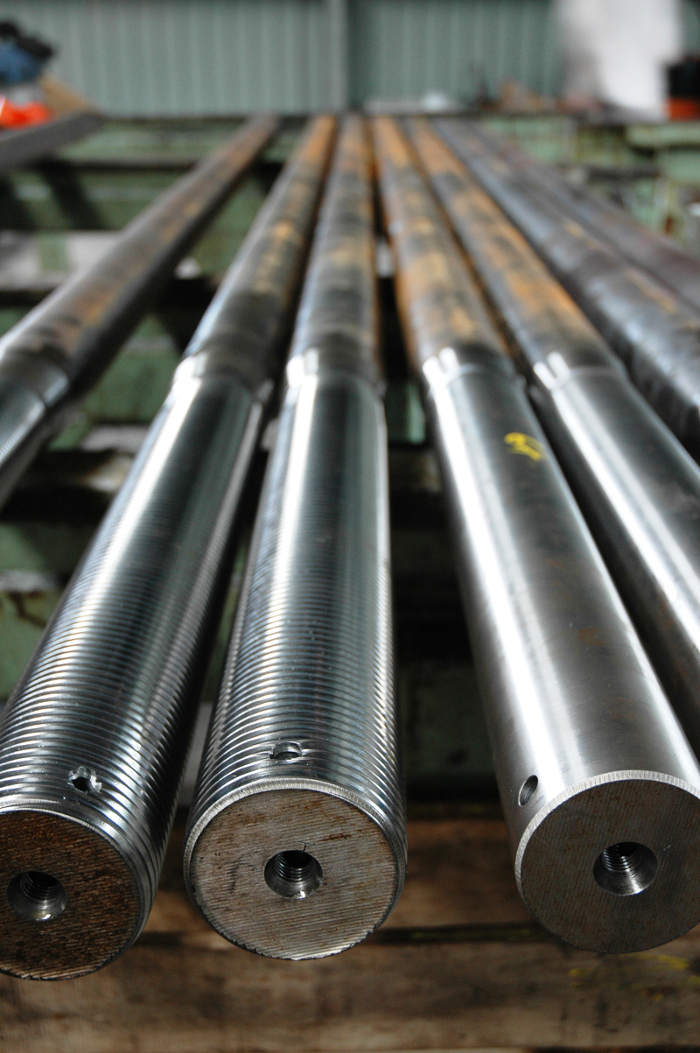

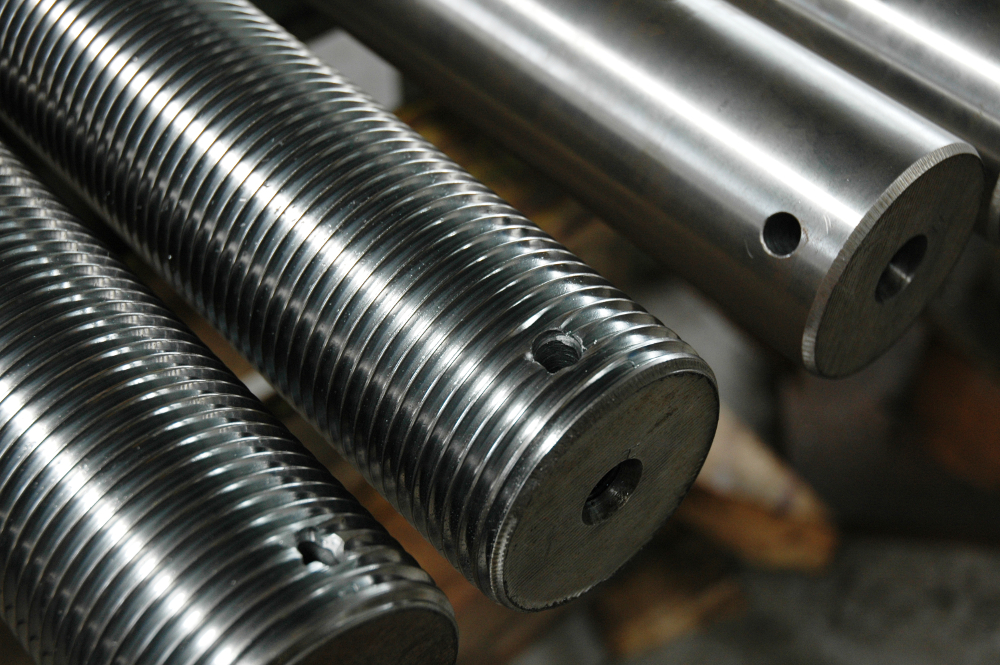

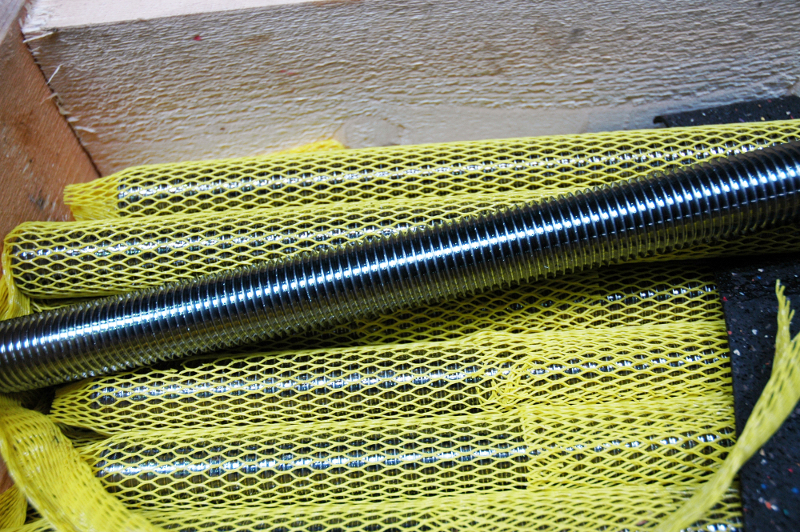

Tubes etires froid1 Tubes etires froid2 Tubes etires froid3
